Subtitle

168 LEDs/m High-Density Design · 5.2W/m · 3MM Narrow PCB for Uniform Linear Lighting & Backlighting

Model: LT12-2025D-k3-168-30/40/65

Product Overview

The DZOPTO High-Density 3MM Ultra-Narrow LED Strip combines a compact 3 mm PCB with 168 LEDs per meter, providing a high-density lighting solution for applications that require both limited installation space and more continuous illumination.

Using compact 2025 LEDs, the strip is designed to fit into narrow channels, slim display structures, cabinet profiles, mirror frames and commercial backlighting systems where conventional wider LED strips may be difficult to install.

With 168 LEDs/m and a power consumption of only 5.2W/m, the closely spaced LEDs help create smoother and more uniform linear illumination. This makes the product particularly suitable for jewelry showcases, retail displays, light boxes and backlight panels, where visible dark areas between LEDs can affect the overall lighting appearance.

The strip operates at DC12V and is available in 3000K, 4000K, 6500K and 9000K.

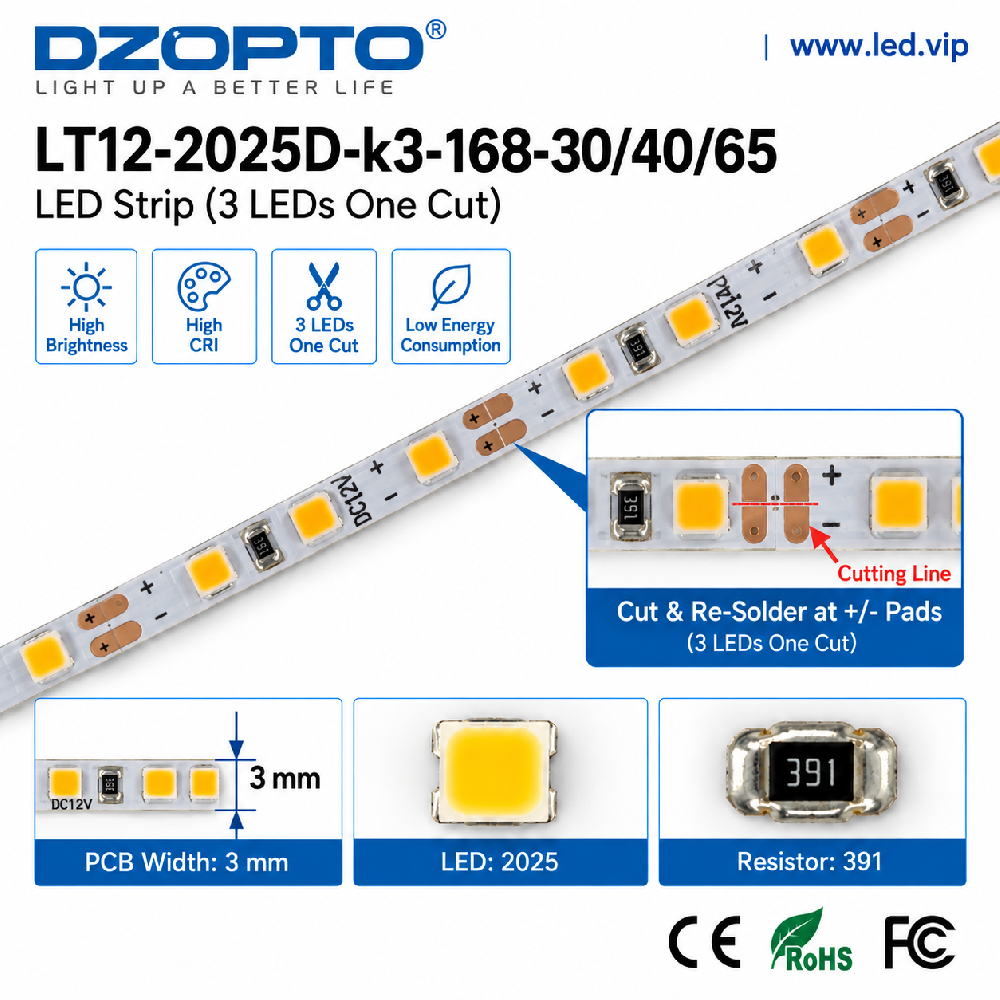

Each cutting section contains 3 LEDs. The strip can be cut at the designated copper-pad position and re-soldered through the +/- pads, providing flexibility for customized installation lengths.

Key Advantages

168 LEDs/m High Density
Closely spaced 2025 LEDs provide dense light distribution for linear lighting and backlighting applications.

Only 3MM Wide
The narrow PCB allows installation inside compact profiles, display structures and other space-limited areas.

Designed for Uniform Backlighting
The combination of a narrow PCB and high LED density makes this model particularly suitable for applications requiring continuous linear illumination.

3 LEDs One Cut
Every three LEDs form one cutting section, allowing the strip to be adapted to different installation lengths.

Multiple CCT Options
Available in 3000K / 4000K / 6500K / 9000K.

Technical Specifications

Applications

This high-density 3MM LED strip is particularly suitable for:

Jewelry Showcases · Jewelry Display Cabinets · Retail Display Cases · Display Cabinets · Wardrobe & Cabinet Lighting · Ultra-Narrow Linear Lighting · Light Boxes · Backlight Panels · Commercial Display Backlighting · Bathroom Mirrors · Smart Mirrors · Digital Photo Frames · Automotive Dashboard Backlighting · Automotive Ambient Lighting · Automotive Interior Lighting
