Subtitle

120 LEDs/m · 4.8W/m · One LED One Cut · Designed for Tight-Space Lighting & Backlighting Applications

Model

LT12-2025D-k3-120-30/40/65

Product Overview

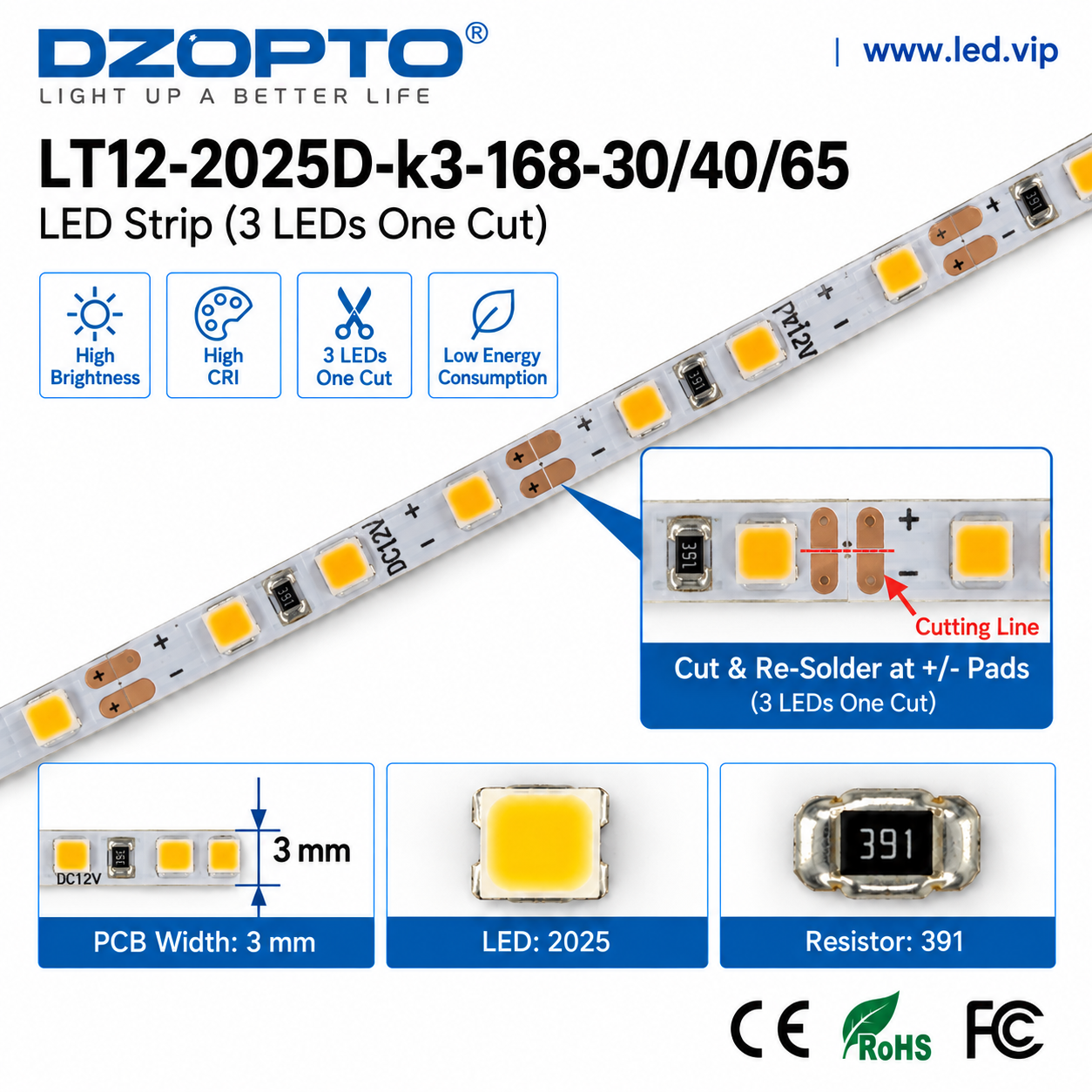

The DZOPTO 3MM Ultra-Narrow LED Strip is specially designed for lighting and backlighting applications where installation space is extremely limited.

With a PCB width of only 3 mm, this LED strip can fit into narrow channels, slim lighting profiles, compact display structures, mirror frames, cabinets and other tight spaces where conventional wider LED strips are difficult to install.

The strip uses 2025 LEDs, with 120 LEDs per meter and a power consumption of 4.8W/m. Color temperature options include 3000K, 4000K, 6500K and 9000K, allowing the same ultra-narrow platform to support warm, neutral, cool and high-color-temperature lighting applications.

Its One LED One Cut design provides excellent flexibility for applications requiring precise installation lengths. The strip can be cut and re-soldered at the designated +/- pads, making it particularly suitable for customized linear lighting, display lighting and commercial backlighting projects.

Key Specifications

Key Features

1. 3MM Ultra-Narrow PCB

The 3 mm wide PCB is the key advantage of this LED strip. Its narrow construction allows designers and manufacturers to integrate LED lighting into spaces where conventional LED strips are too wide.

2. Designed for Tight Spaces

Suitable for narrow lighting channels, compact product structures, slim display cabinets, mirror frames, furniture and other applications with limited installation space.

3. One LED One Cut

The One LED One Cut design allows the strip length to be adjusted with much greater precision than conventional multi-LED cutting designs.

4. Cut & Re-Solder at +/- Pads

The LED strip can be cut at the designated positive and negative solder-pad positions and reconnected by soldering, providing additional flexibility for customized installations.

5. 120 LEDs per Meter

With 120 LEDs/m, the strip provides dense LED distribution for linear illumination and backlighting applications.

6. Low Power Consumption

Power consumption is only 4.8W per meter, making it suitable for compact lighting and backlighting systems where space and power consumption are important considerations.

7. Four Color Temperature Options

Available color temperatures:

3000K · 4000K · 6500K · 9000K

This allows customers to select different lighting effects for furniture, displays, mirrors, automotive interiors and commercial backlighting applications.

Applications

The DZOPTO 3MM Ultra-Narrow LED Strip can be used in a wide range of compact lighting and backlighting applications, including:

• Ultra-Narrow Linear Lighting

• Jewelry Display Cabinets

• Jewelry Showcases

• Retail Display Cases

• Wardrobes

• Cabinets

• Furniture Lighting

• Display Cabinets

• Light Boxes

• Advertising Light Boxes

• Backlight Panels

• Commercial Backlighting

• Retail Display Backlighting

• Bathroom Mirrors

• LED Mirrors

• Smart Mirrors

• Digital Photo Frames

• Automotive Dashboard Backlighting

• Automotive Ambient Lighting

• Automotive Interior Lighting

• Other Tight-Space Lighting Applications
